- Project name: NOPP-GIGAS-TEMP-3N
- Funding source:National Oceanographic Partnership Program
- Species: Crassostrea gigas
- variable: High temperature stress
Tank build progress

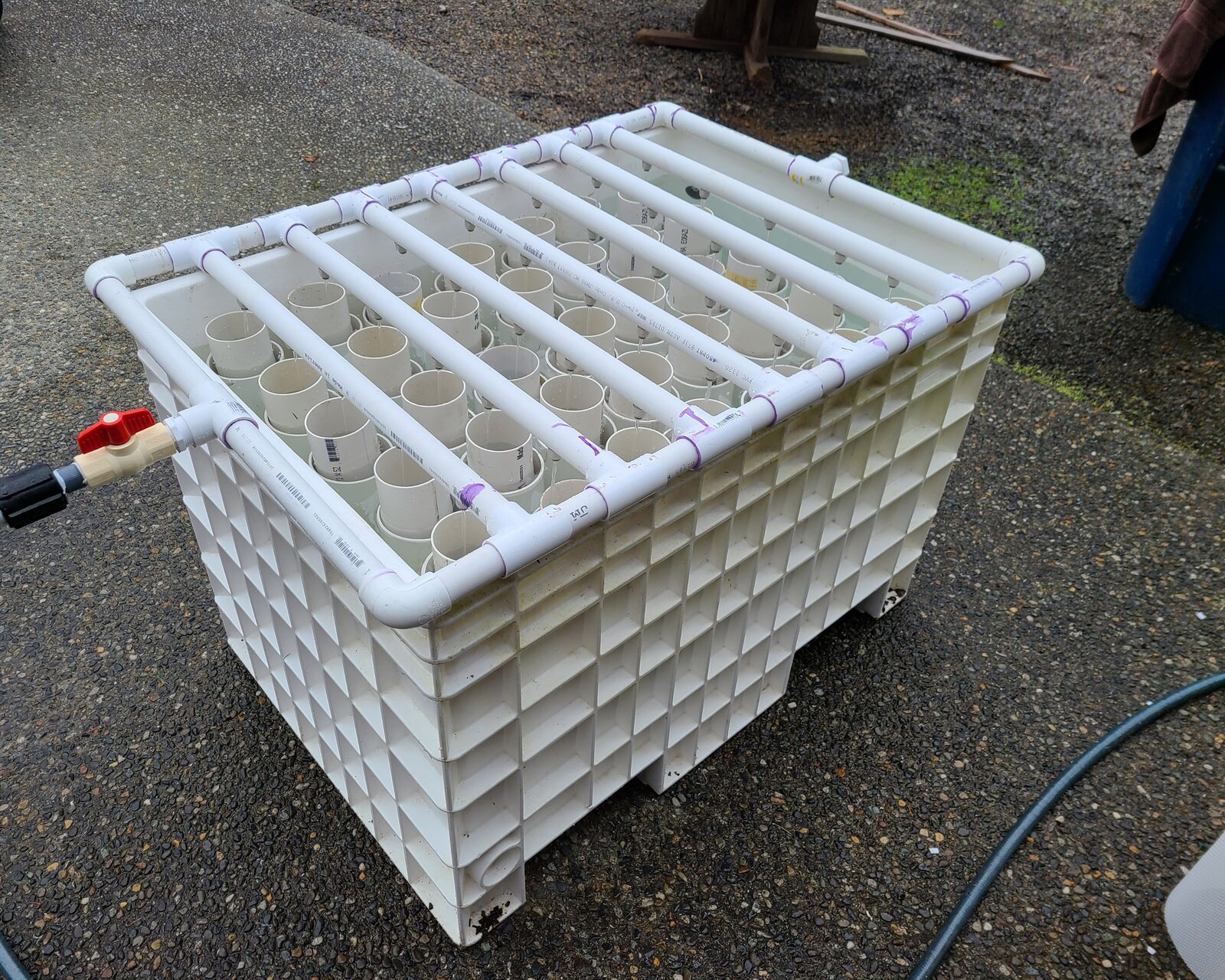

After dealing with some covid-19 imposed supply chain issues, the first tank prototype with 35 silos has been completed.
Table 1: Supplies List (silos and manifold)
Item | Supplier | Qnty needed | price |
---|---|---|---|
1” PVC pipe schedule 40 - 10’ | Home Depot | 3 | $9.99 |
3” PVC pipe sewer grade - 10’ | McLendon Hardware | 7 | $11.99 |
4” PVC pipe sewer grade - 10’ | McLendon Hardware | 7 | $16.98 |
4” PVC drain pipe cap | Home Depot | 35 | $2.32 |
16” cable ties - pk 100 | Amazon | 35 | $0.14 |
1” PVC elbow fitting | Home Depot | 4 | $0.55 |
1” PVC tee fitting | Home Depot | 15 | $1.34 |
1” PVC ball valve | Home Depot | 2 | $4.98 |
1/4” push-to-connect-valves | McMaster Carr | 35 | $0.88 |
1/4” push-to-connect NPT adapter | McMaster Carr | 35 | $1.76 |

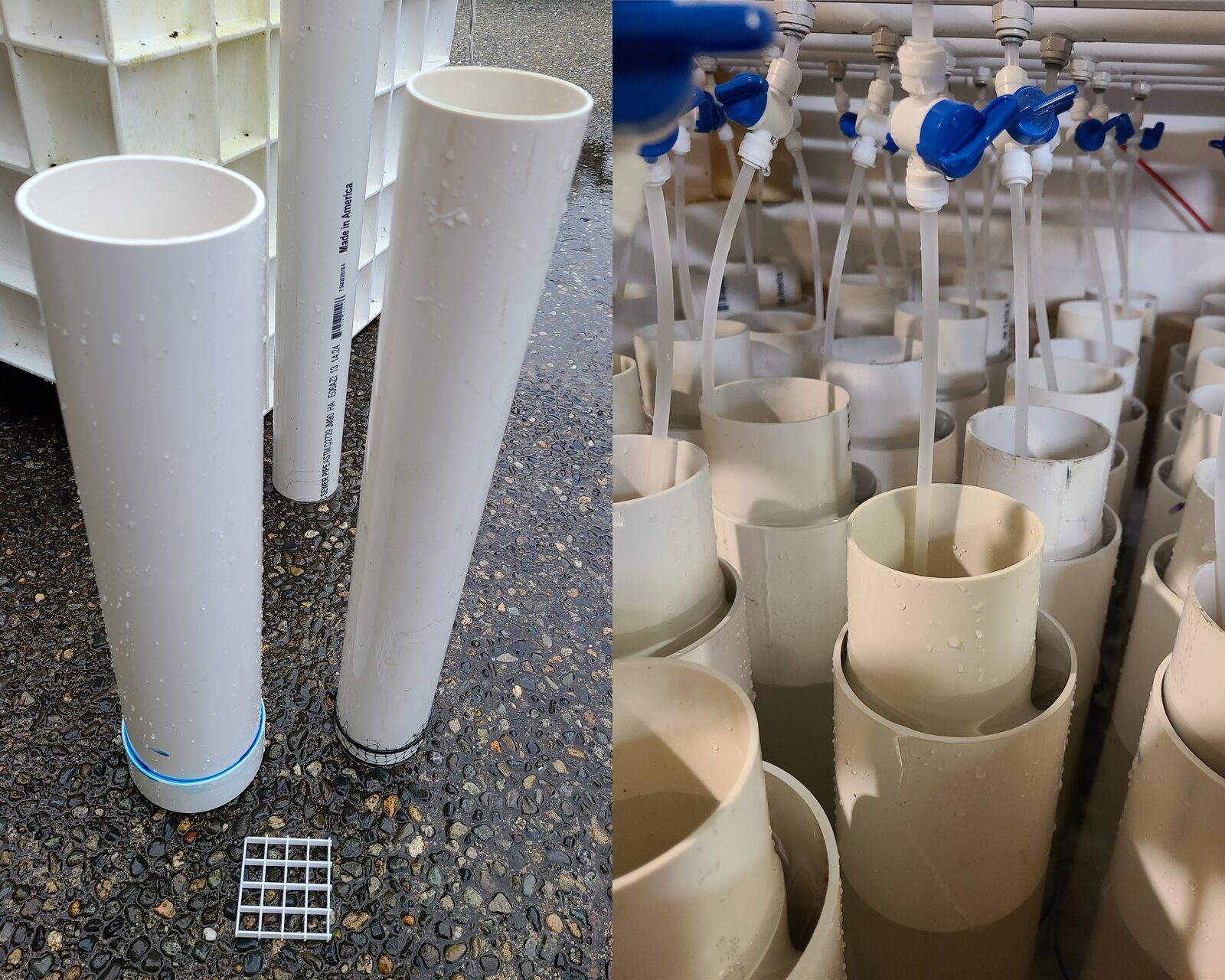

A view of the silos and tank inside:

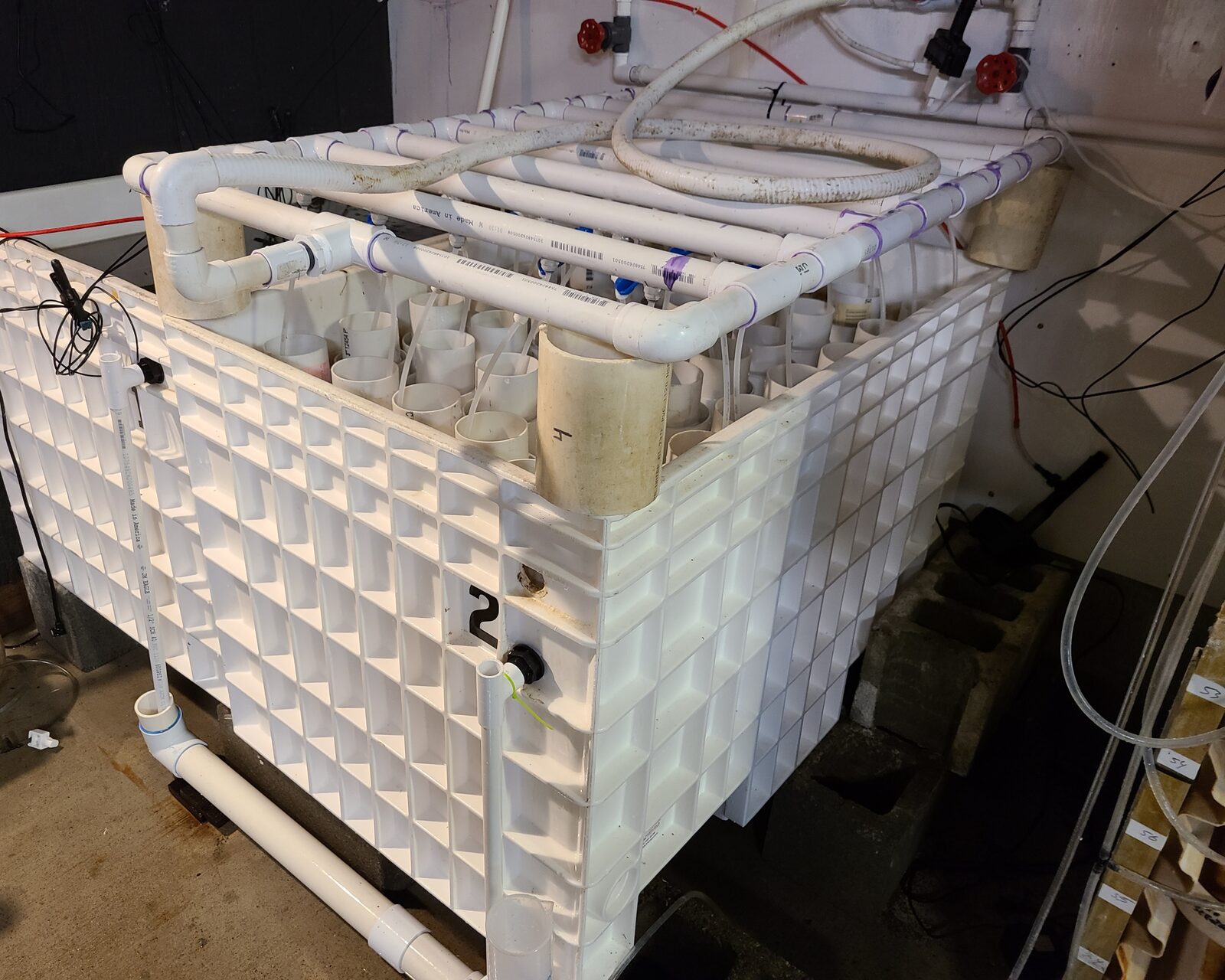

The tank prototype installed at point whitney:

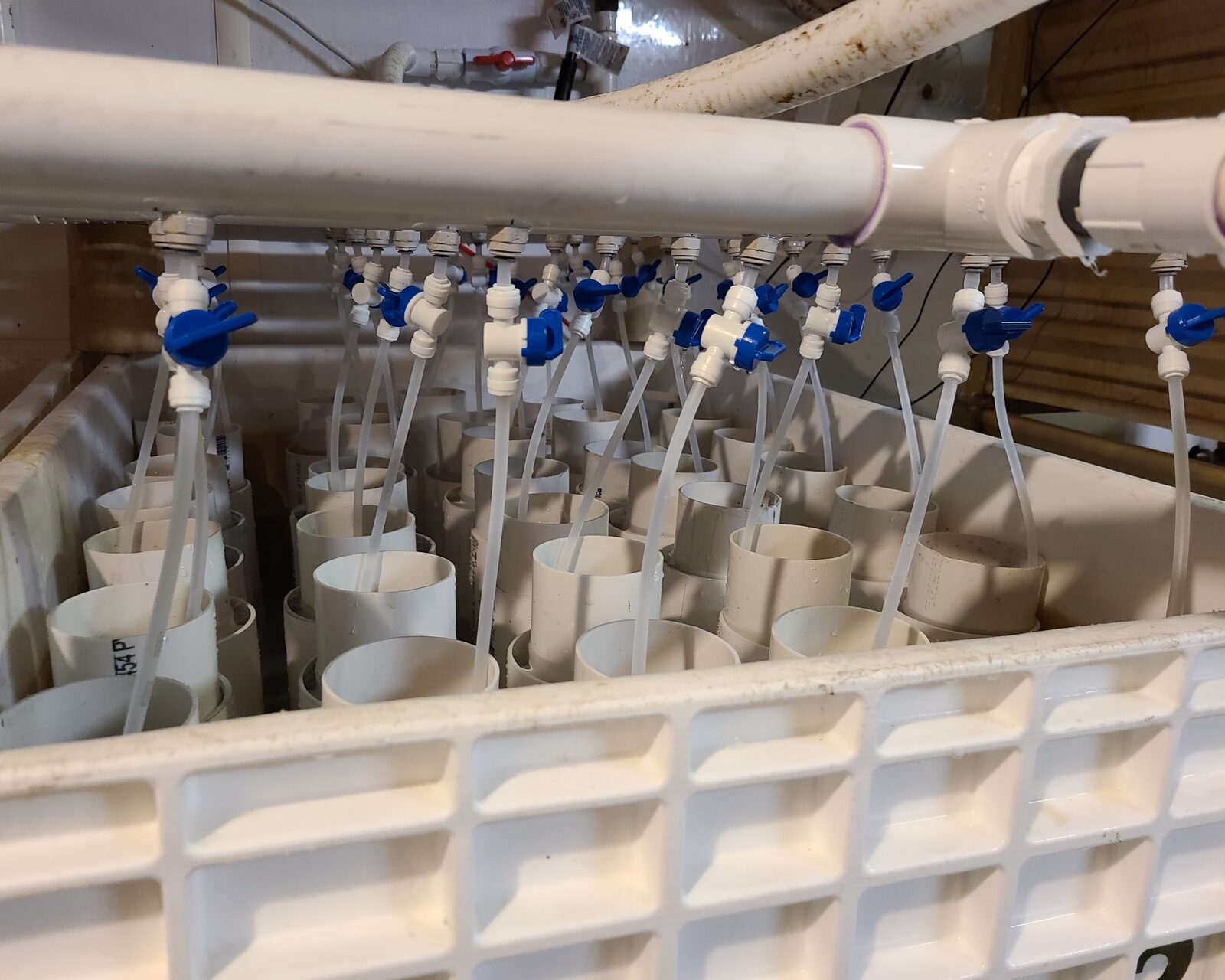

Side view of the manifold with push-to-connect fittings installed:
Manifold flow test:
